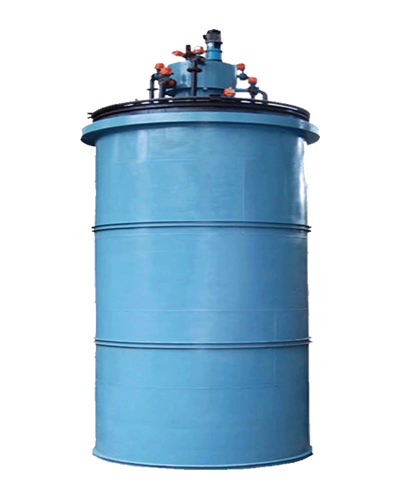

Prefabricated STP

Environment Friendly, Stops ground water contamination as excellent quality water discharged.

Benefits

  • Very Compact occupies very less space.
  • Negligible maintenance.
  • PLC based Control Panel.
  • Minimal man power required.
  • Fully automatic system.
  • Easy to erect and operate.
  • Can be transported to any location.
  • Pre-fabricated unit.
  • Power required 1 to 1.2 kw/m
  • Delivery period : normally within 3 months.
  • Transport : as actual.
  • Erection : 2 days.

Features

  • Main tank in MS (epoxy painted) / FRP
  • Disk type Air diffusers.
  • Air blower / compressors with accessories.
  • Fully automatic PLC based control panel.
  • Sewage Pumps.
  • Sludge disposal unit optional.

Capacity

Model Suitability
4 PAC 60 R 60 cum/day – 600 persons
4 PAC 120 R 120 cum/day – 1200 persons
4 PAC 180 R 180 cum/day – 1800 persons
4 PAC 60 R 60 cum/day – 600 persons
Customized modules can be offered for higher capacities.

Outlet results far superior than expected by State Pollution Control Board (SPCB) :

Our proven outlet results MPCB expected outlet results
ph : 7 to 8 ph : 7 to 8
BOD : Less than 10 mg/lit. BOD : Less than 20 mg/lit.
SS : Less than 10 mg/lit. SS : Less than 30 mg/lit.
COD : Less than 50 mg/lit. COD : Less than 250 mg/lit.
