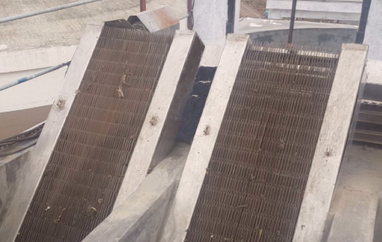

Mechanical Fine Screen (Step Type)

HNB's Mechanical fine bar screen acts as a filter in removing the small escaped objects like plastic wrappers, bags, or other floating material from waste water. These screens are usually installed at the primary unit of the treatment plant. The bars of the screens are usually spaced at a fixed distance enabling the screen to restrict the floating material. The screens are designed in such a way that they carry the trapped floating material to the disposal point efficiently and can be driven automatically with the help of PLC.

Specifications

Typical Applications :

Sewage, waste water, industrial effluent, paper and pulp mills waste. Most suitable for Nala or Flowing water bodies & Sewage pumping stations.

Type :

Step Type Bar screen

Width of Screen:

450mm to 1500mm for Single Rake configuration.

Length of Screen :

Up to 3500mm

Angle of Inclination

40 to 45 degrees with horizontal

MOC :

S.S. of appropriate grade or as per design

Openings of Screen :

3mm to 6mm or as per design

Drive :

Electric Motor

Controls :

Fully automatic controlled by PLC.

Benefits

• Very Compact (Occupies very less space).
• Suitable for heavy duty applications.
• Available with/without Conveyor.
• Easy to Erect and Operate.
• Fully automatic PLC controlled system.
• No human contact with sewage/screenings.
