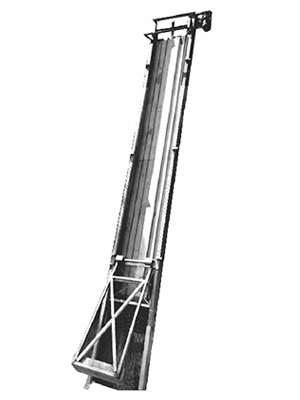

Mechanical Coarse Bar Screen (Impact Type)

Specifications

Typical Applications :

Sewage, waste water, industrial effluent, paper and pulp mills waste. Most suitable for Nala or Flowing water bodies & Sewage pumping stations.

Type :

Bar screen

Width of Screen:

450mm to 2500mm for Single Rake configuration.

Length of Screen :

Up to 19000mm

Angle of Inclination

70 to 75 degrees with horizontal

MOC :

S.S. of appropriate grade or as per design

Openings of Screen :

20mm to 60mm or as per design

Drive :

Electric Motor

Controls :

Fully Automatic Controlled By Plc.

Benefits

  • Impact is created by the rake over bars to ensure guaranteed removal of screening & pushes ahead settled material like grit etc.
  • Facility to adjust impact is very special future useful in case of commissioning of OLD pump house after long duration.
  • Very Compact (Occupies very less space).
  • Suitable for heavy duty applications.
  • Available with/without Conveyor.
  • Easy to Erect and Operate.
  • Fully automatic PLC controlled system.
  • No human contact with sewage/screenings.
